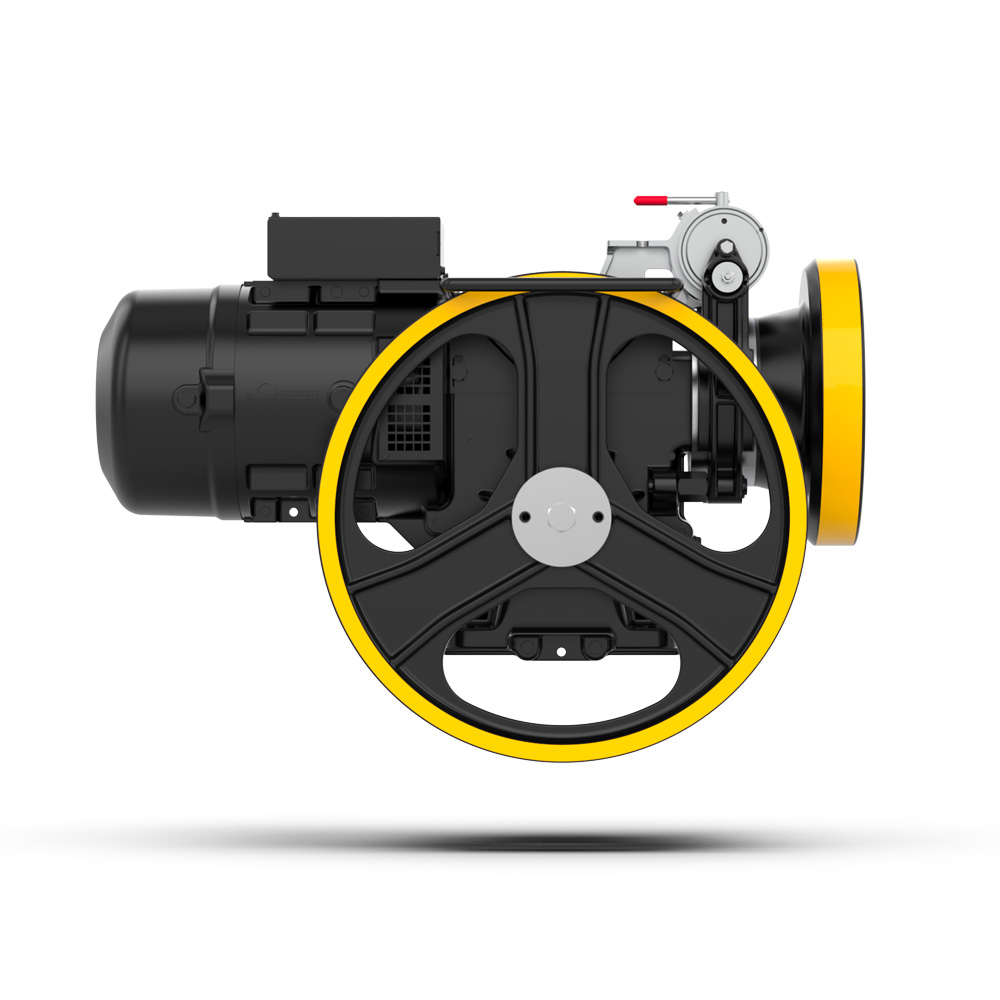

Geared MR12C

PRODUCTS / GEARED SERIES

GEARED MR12C is a gearbox for elevators and lifting platforms with maximum capacity up to 550 kg. Several options and special versions are available upon request.

Maximum Static Load

25,5 kN – 2600 kg

Maximum Capacity

550 kg

Reduction Ratio

1/52; 1/45; 1/43; 2/53; 2/43

Oil Capacity

3,8 l

Power Range

50 Hz › 2,7 ÷ 5,5 kW
60 Hz › 4 ÷ 6 kW

ACCESSORIES

Microcontacts
Encoder
Pulley Protection
Bedplate
Flywheel Protection on Request

DOWNLOAD

TECHNICAL SHEETS

Technical sheet MR12C(PDF)

TECHNICAL DRAWINGS

TECHNICAL MANUALS

CERTIFICATES

MUM0211_REV12 (PDF)

PRODUCT RELATED VIDEO

Unpacking geared machines MR12C

Encoder geared machines MR12C assembly instruction
