Gearless SG53

PRODUCTS / GEARLESS SERIES

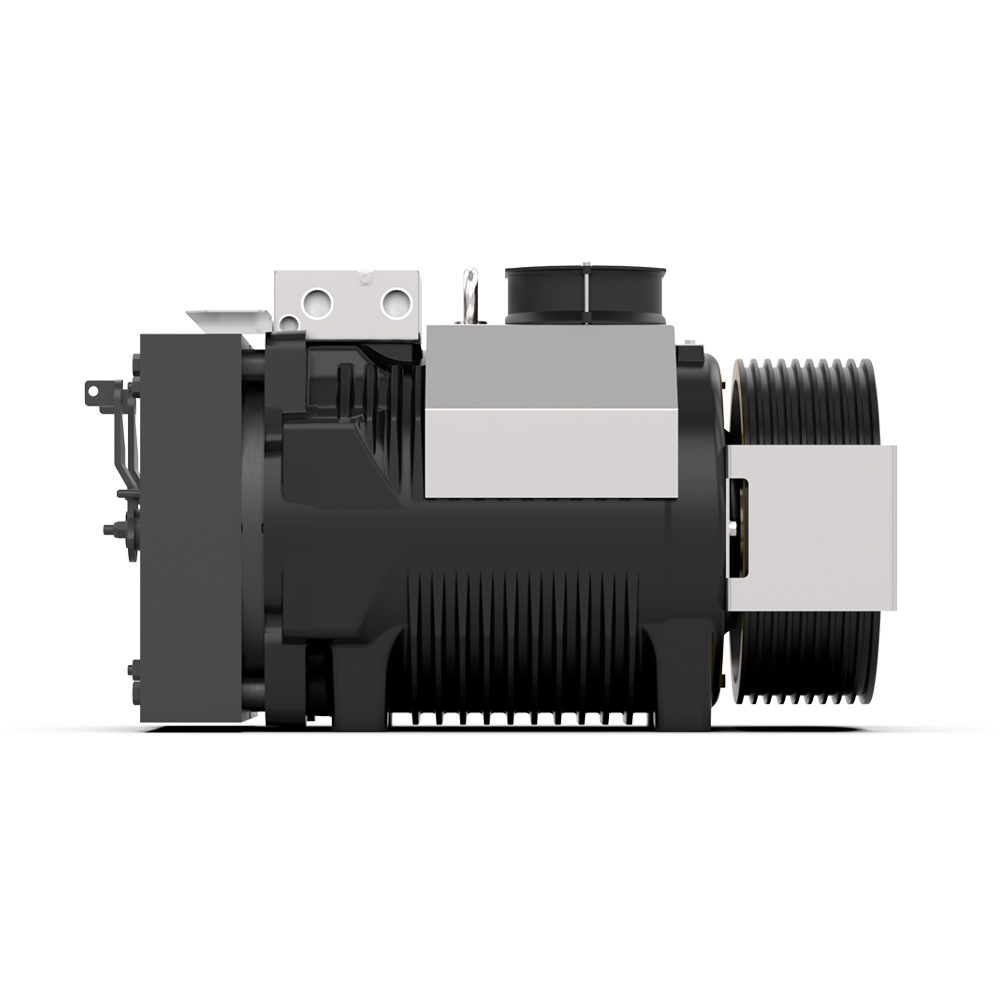

GEARLESS SG53 is a gearless traction machine for elevators and lifting platforms with maximum capacity up to 1600 kg.
Several options and special versions are available upon request.

Torque
Rated

900 Nm (S3 40%)

Power Range
(min - max)

5,1 – 29,2 kW

Static Load
Maximum

39,2 kN – 4000 kg

Maximum Capacity

1600 kg

Nominal Motor
Voltage

360 V

ACCESSORIES

Bedplate
Pulley Protection
Ventilation Kit
Kit Rescue
Encoder Cable
Power Cable
Service Cable
Terminal Box With Side Application
Brake Power Supply
Release Levers
Levers for Brake Hand Release with Remote Operation
