Gearless SG58

PRODUCTS / GEARLESS SERIES

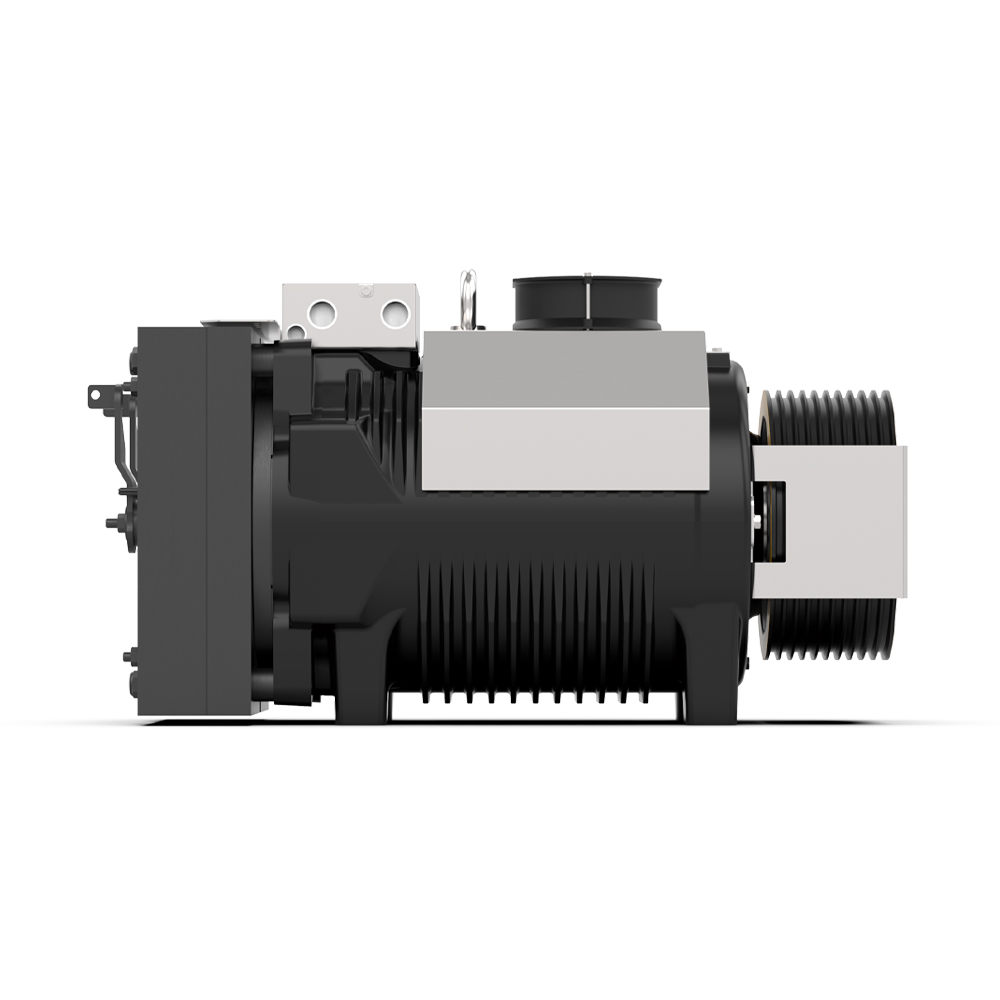

GEARLESS SG58 is a gearless traction machine for elevators and lifting platforms with maximum capacity up to 2000 kg.
Several options and special versions are available upon request.

Torque
Rated

1065 Nm (S3 40%)

Power Range
(min - max)

6 – 34,6 kW

Static Load
Maximum

39,2 kN – 4000 kg

Maximum
Capacity

2000 kg

Nominal Motor
Voltage

360 V

ACCESSORIES

Bedplate
Pulley Protection
Ventilation Kit
Kit Rescue
Encoder Cable
Power Cable
Service Cable
Terminal Box With Side Application
Brake Power Supply
Release Levers
Levers for Brake Hand Release with Remote Operation

DOWNLOAD

TECHNICAL SHEETS

Technical sheet SG58 (PDF)

TECHNICAL DRAWINGS

TECHNICAL MANUALS

CERTIFICATES

MUM0212_REV12 (PDF)

PRODUCT RELATED VIDEO

Unpacking gearless machines SG series

Nip guard gearless machines SG series assembly instructions
